Sealed Rivet Dome Head - Alum body/Steel mandrel
Product Code: ADSEAL4811
Head Type: Dome Head
Min Grip Range (mm): 4
Max Grip Range (mm): 6
Shear N: 2230
Tensile N: 3070
Body Mat: Alum Alloy 5056
Mandrel Mat: Steel - Zinc Cr3
Hole: 4.9mm

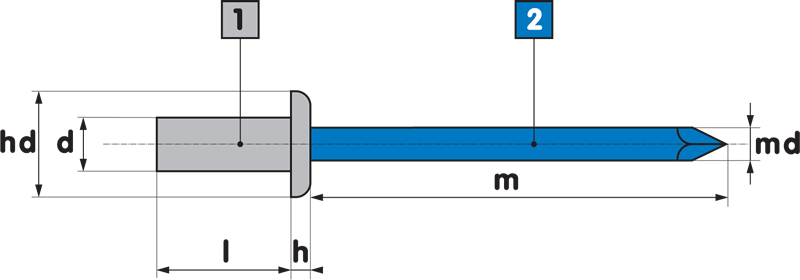

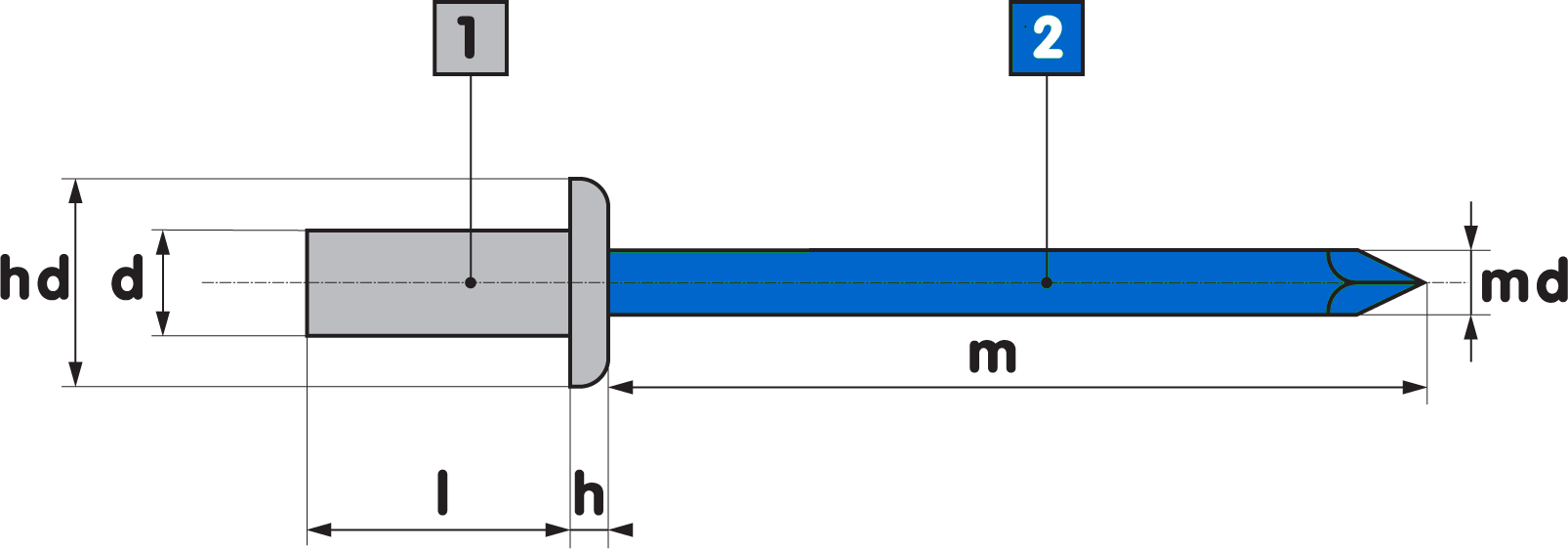

hd: 9.5 +/ 0.29mm
d: 4.8 +/ 0.08mm
l: 11mm
h: 2.0mm
m: 27mm
md: 2.63mm
